Trocar with Sheath - Straight
The One-Step centesis catheter has a low profile, tapered tip and smooth transitions to decrease resistance for less patient discomfort.
While the four large drainage holes spiral around the catheter for maximum drainage.
Kink-resistant Material, Keeps catheter open to help maximize drainage Sharp needle and smooth transitions for ease of insertion and decreased patient discomfort.
Use : The one step Centesis Drainage catheter is indicated for percutaneous drainage of fluid such as paracentesis and Thoracentesis procedure.
​
Size: 5Fr,6Fr,7Fr,8Fr
Length : 9cm,12cm,15cm
Trocar With Sheath - Pigtail
The One-Step Centesis catheter has a low profile, tapered tip and smooth transitions to decrease resistance for less patient discomfort. while the four large drainage holes spiral around the catheter for maximum drainage.
-
Pigtail shape reduce drainage hole occlusion.
-
Kink-resistant Material Keeps catheter open to help maximize drainage.
-
Sharp needle and smooth transitions for ease of insertion and decreased patient discomfort.
The one step Centesis Drainage catheter is indicated for percutaneous drainage of fluid such as paracentesis and Thoracentesis procedure.
​
SIZE ( IN FR) 6,7,8
LENGTH (IN CM) 15
Pleu - Tap
Valved One-Step centesis catheters are designed with an integrated selfsealing valve to minimize the risk of air entering the pleural space and to prevent fluid leakage during thoracentesis and paracentesis procedures.
The catheter's low profile, tapered tip, and smooth transitions decrease resistance for less patient discomfort. Four large drainage holes are present for maximum drainage.
The valved One-Step centesis catheter is designed with an integrated self sealing valve to minimize the risk of air entering the pleural space. The set contains a securement device so no need of suturing.
​
SIZE ( IN FR) 6,7,8
LENGTH ( IN CM) 15
SET INCLUDES:
-
PIGTAIL CATHETER WITH VALVE,
-
TROCAR NEEDLE,
-
BAG CONNECTOR,
-
THREE WAY STOPCOCK,
-
CATHETER RETENTION DEVICE.
Centesis Draniage Catheter Set
The Seldinger Centesis Drainage catheter is a short term drainage catheter with straight tip.
Indicated for percutaneous drainage of fluid such as paracentesis and Thoracentesis procedure.
​
SIZE ( IN FR): 5,6
LENGTH (IN CM): 16
SET INCLUDES:
-
STRAIGHT TIP CATHETER
-
GUIDE WIRE
-
INTRODUCER NEEDLE
Multipurpose Drainage catheter
Used for percutaneous drainage of various of drainage application like biliary , abscess drainage , nephrostomy drainage in Seldinger techniques.
Features: -
- The pigtail tip configuration helps in the retention of the distal tip .
- Radiopaque for better visualization,- It's a very soft non kinking , flexible catheter.
- Smooth insertion in Seldinger techniques,
Available with hydrophilic coating and marking. Eye holes for better drainage.
​
SIZE ( IN FR) 6,7,8,8.5,10,12,14,16,18,20
LENGTH (IN CM) 30
SET INCLUDES:
-
PIGTAIL CATHETER.
-
PLASTIC OBTURATOR
-
BAG CONNECTOR
Multipurpose Drainage Catheter with Needle
Used for Percutaneous drainage in a variety of drainage application. This is used for direct puncture technique.
(e.g, Nephrostomy, Billiary and Abscess) by direct puncture.
ADVANTAGE: This pigtail flexi catheter has bigger eye holes with hydrophilic coating and marking.
Pigtail Catheter has a good memory shape.
SIZE ( IN FR) 6,7,8,8.5,10,12,14,16,18,20
LENGTH (IN CM) 15, 22,25,30
​
SET INCLUDES:
PIGTAIL CATHETER .
TROCAR NEEDLE,
BAG CONNECTOR

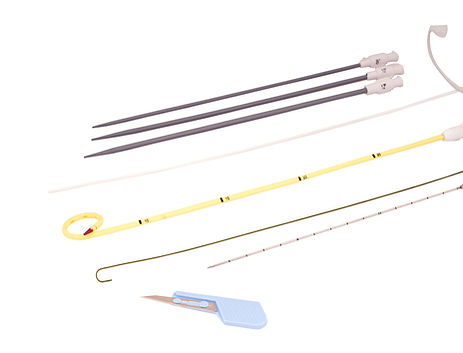

Multipurpose Drainage catheter Set
Used for Percutaneous drainage in a variety of drainage application. This is used for direct puncture technique.
(e.g, Nephrostomy, Billiary and Abscess) by direct puncture.
ADVANTAGE: This pigtail flexi catheter has bigger eye holes with hydrophilic coating and marking.
Pigtail Catheter has a good memory shape.
SIZE ( IN FR) 6,7,8,8.5,10,12,14,16,18,20
LENGTH (IN CM) 15, 22,25,30
​
SET INCLUDES:
-
PIGTAIL CATHETER ,
-
SET OF ATRAUMATIC FASCIAL DILATORS,
-
IP NEEDLE - 2PART .
-
GUIDE WIRE - J TIP SCALPEL,
-
BAG CONNECTOR
Optima drainage catheter - Sure looc with Needle
Used for percutaneous drainage of various of drainage application like biliary, abscess drainage, nephrostomy drainage in Direct puncture or Seldinger techniques.
THE OPTIMA MULTIPURPOSE Drainage Catheter Features Multiple eye holes for percutaneous Drainage, has a locking pigtail.
Features -
- The pigtail tip configuration helps in the retention of the distal tip.
- Radiopaque for better visualization
- It's a very soft non kinking, flexible catheter
- Smooth insertion in Seldinger techniques.
- Available with or without hydrophilic coating.
-Eye holes for better drainage.
​
SIZE ( IN FR) 6,7,8,8.5,10,12,14,16
LENGTH (IN CM) 25,30
SET INCLUDES:
LOCKING PIGTAIL MULTIPURPOSE DRAINAGE CATHETER
TROCAR WITH NEEDLE
PLASTIC OBTURATOR
BAG CONNECTOR
